ISO 8744

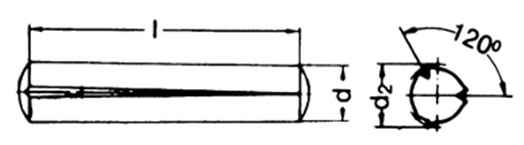

Dimensions of Grooved Dowel Pins
d1
d2
c
1.5
1.60 to 1.63
0.2
2
2.10 to 2.15
0.25
2.5
2.60 - 2.70
0.3
3
3.20 - 3.30
0.4
4
4.15 - 4.30
0.5
5
5.15 - 5.30
0.63
6
6.15 - 6.35
0.85
8
8.20 - 8.40
1
10
10.20 - 10.45
1.2
12
12.25 - 12.50
1.6
